Epoxy Injection Type Anchor Glue Building Concrete Steel Bar Anchor Adhesive

Epoxy Injection Type Anchor Glue Building Concrete Steel Bar Anchor Agent

Factory Information:

With 20 years of experience in adhesive production, the factory covers an area of 40,000 square meters, equipped with highly

mechanized facilities. The daily output reaches 30,000 pieces, and there are over 200 production and R&D personnel. We are

an original factory supporting OEM/ODM. Our products are cost-effective. Looking forward to your contact.

Epoxy Resin Anchor Adhesive

Epoxy Resin Anchor Adhesive is two-components modified epoxy resin adhesive, with high quality plastic tube, double cartridge

package.

Epoxy Resin Anchor Adhesive is injected into holes with dispenser gun, by mixing part A and part B evenly, to plant rebars.

Usage Scenarios:

• Building reinforcement - Reinforcing the beams, columns, slabs and other structures of old buildings to increase
•
  their bearing capacity.
•

  New construction projects - Embedding rebar for constructing new concrete structures, and fixing stair handrails and

• balcony railings.
• Bridge engineering - Strengthening the piers, beams and other parts of bridges.
• Tunnel engineering - Fixing anchor bolts and steel mesh in tunnels.
• Equipment foundation installation - Providing a solid foundation for the installation of large equipment.
• Rail transit - Fixing track sleepers.
• Water conservancy projects - Reinforcing water dams, embankments and other water conservancy facilities.
• Billboard installation - Fixing the support structure of large outdoor billboards.

est Report

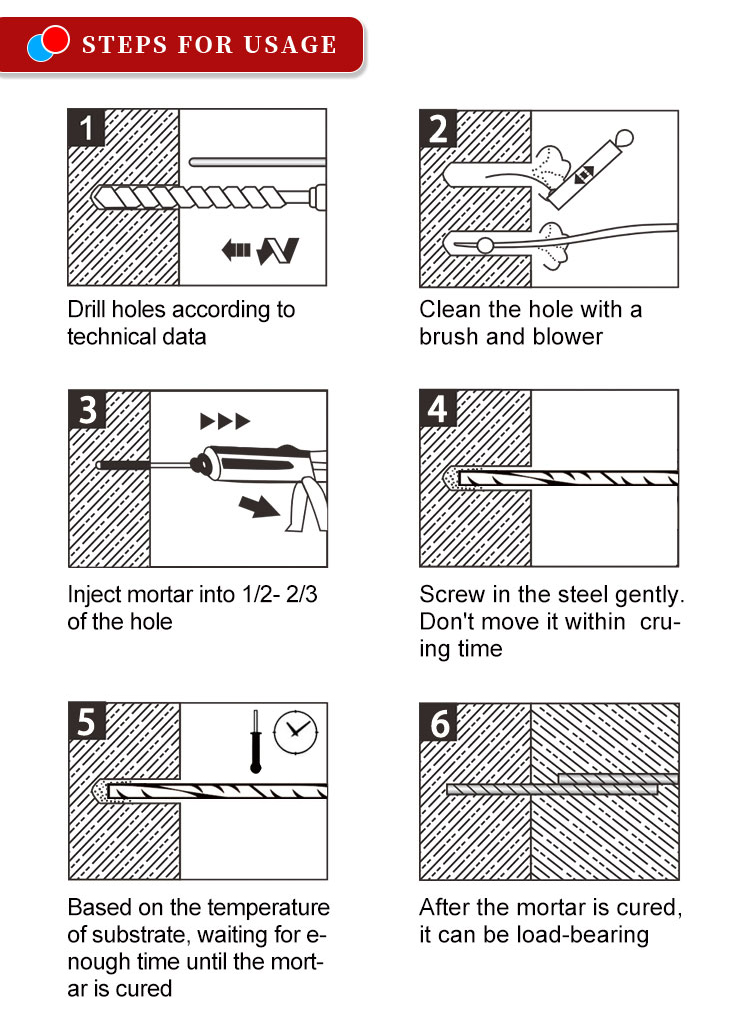

Usage Method:

• Drilling - Drill holes at the positions where rebar is to be implanted according to the design requirements using an
• electric drill.
• Hole cleaning - Use a brush or blower to remove dust and debris from the holes, then wipe the hole walls with
• or alcohol to ensure the holes are clean and dry.
• Rebar treatment - Use a wire brush to remove rust and oil stains from the rebar surface, and wipe it clean with
• or alcohol.
• Glue-mixing - Mix the glue liquids of components A and B in accordance with the proportion specified in the rebar-
• planting glue product manual, and stir evenly.
• Glue injection - Inject the well-stirred rebar-planting glue into the holes using a glue injector or syringe. Generally,
• the glue injection volume should reach about 2/3 of the hole depth.
• Implant rebar - Insert the treated rebar quickly into the hole, rotate the rebar in a certain direction to evenly distribute
• the glue liquid and expel the air from the hole.
• Curing and maintenance - According to the curing time of the rebar-planting glue, avoid disturbing the rebar during
• the curing period. Under normal temperature, it usually takes several hours to several days to fully cure.

Contact:

Factory Pictures

Guangzhou Mangrove Rubber Industry Co., Ltd.
